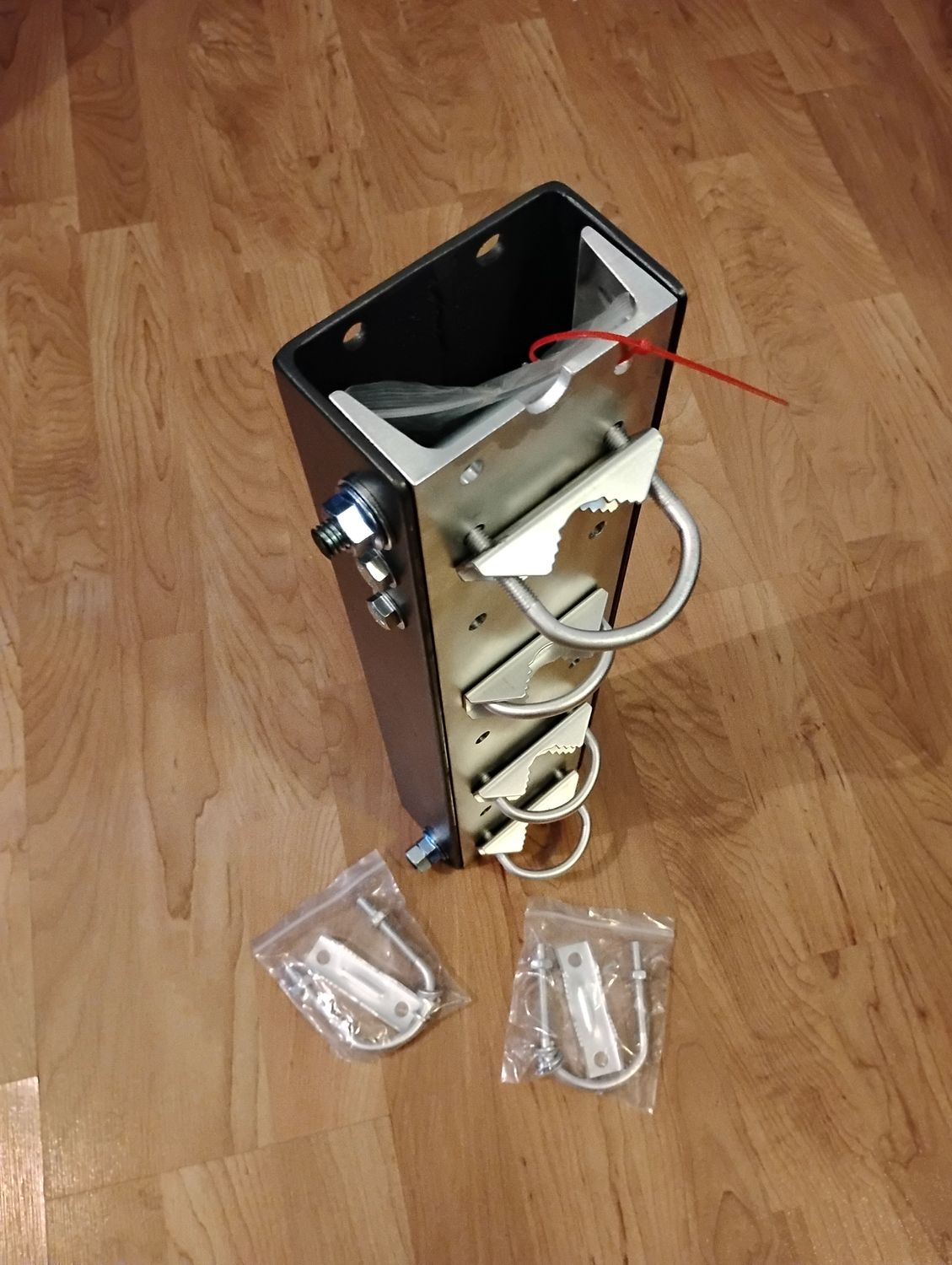

Vertical Base Tilt-Over Antenna Mount Aluminum & Steel Version Extra Tall (18, 21 or 24 inches)

This new version is based on the RRS-1903 Tilt Mount.  It is taller / longer.

Individually made in Evansville Indiana.  Not mass produced.

This is made from all  3/16 inch steel and 6061 four inch aluminum channel for the antenna tilt side. There is No Flex with this design !

Pivots / hinges on a larger 7/16  more robust pin / bolt rather than the two 5/16 bolts that are used on other similar tilt mounts. Is secured in place when in the "Up" position by two bolts that thread into the channel rather than using nuts and bolts as the original 1903 did. This allows for easier securing without having to reach inside the channel to hold the nut with a wrench.

This tilt mount comes with six (6) U-bolts. Three for the "Antenna" tilt-over side and three for the stationary side. Included U-bolts work with mast or pipe up to two (2.0) inch outside diameter.

* Included U-Bolts may be different than pictured.

Ships FREE in the U S. Made in the USA !

Please allow four (4) business days for this to leave my shop. This item is fabricated after it is ordered.

If you need a custom or modified version of this item (or ANY item I make) please contact me with your request .

73 from N9KGC
